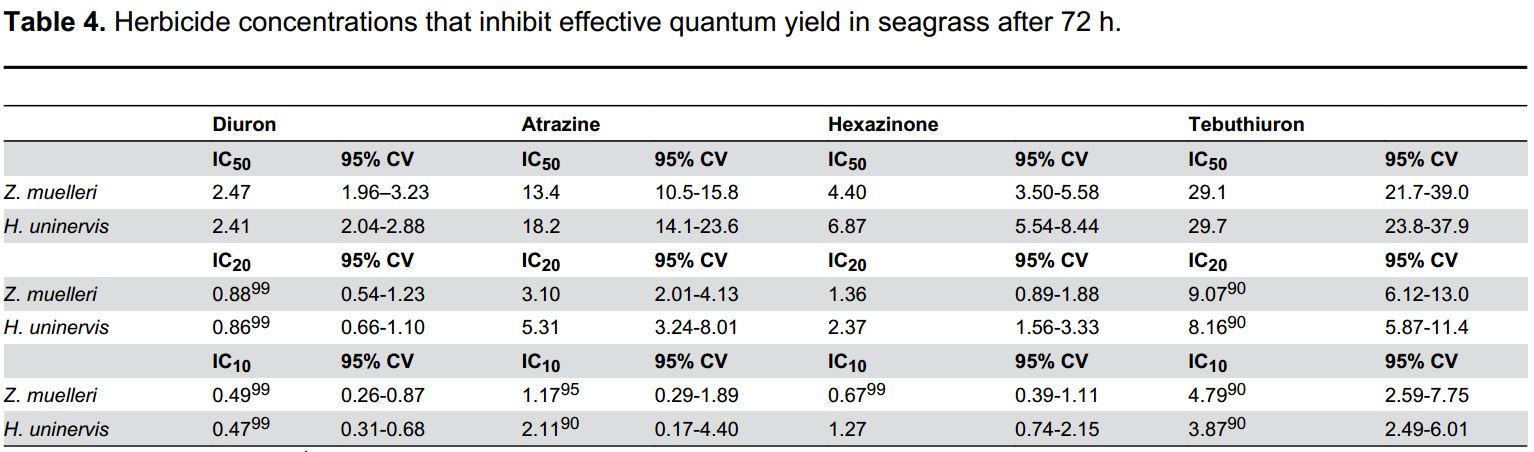

Flores Plosone Herbicides 2013 Table 4
![](https://eatlas.org.au/sites/default/files/styles/m_very_large/public/eatlas/articles/flores_plosone_herbicides_2013_table4.jpg?itok=MAC84Ho5)
doi:10.1371/journal.pone.0075798.t004
Description
Concentration of herbicides (µg l-1) that inhibit effective quantum yield (photosynthetic efficiency ΔF/F’m) by 10%, 20% and 50% (IC10, IC20 and IC50) in Z. muelleri and H. uninervis and following 72 h exposures. Results for 24 h exposures can be found in Table S1. Inhibition concentrations (ICx) below guideline trigger values for protecting 90%, 95% and 99% of species are indicated by respective superscripts (Table S4 [52]). Links to Tables can be found in the source document. Source: doi:10.1371/journal.pone.0075798.t004
Image produced for the project
